The Original "Click-Together" DIY Fabrication Square

Give your fabrication area a boost with what will quickly turn into one of your most commonly used fabrication tools! Designed by fabricators, for fabricators, this weld-yourself fabrication square will save you big bucks on heavy cast alternatives.

NOTE: THIS PRODUCT REQUIRES WELDING FOR ASSEMBLY

Select the welded option to receive this item fully assembled and welded.

1/4" Thick hot-rolled pickled & oiled steel

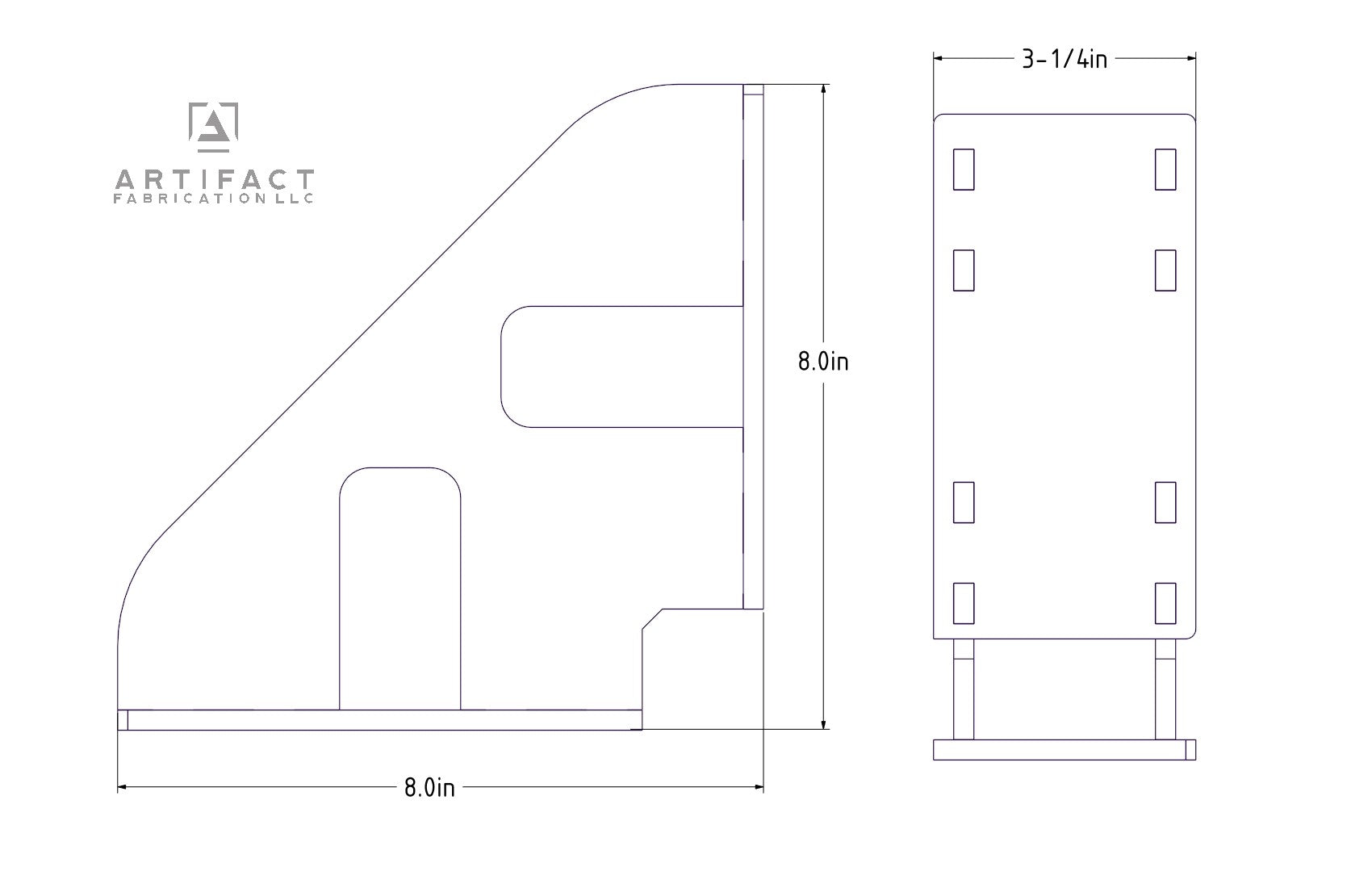

Square measures 8" x 8" x 3" once assembled
Weighs 7.4lbs assembled (excluding welds)
Extra wide 3" faces to cover larger tube surfaces or plate

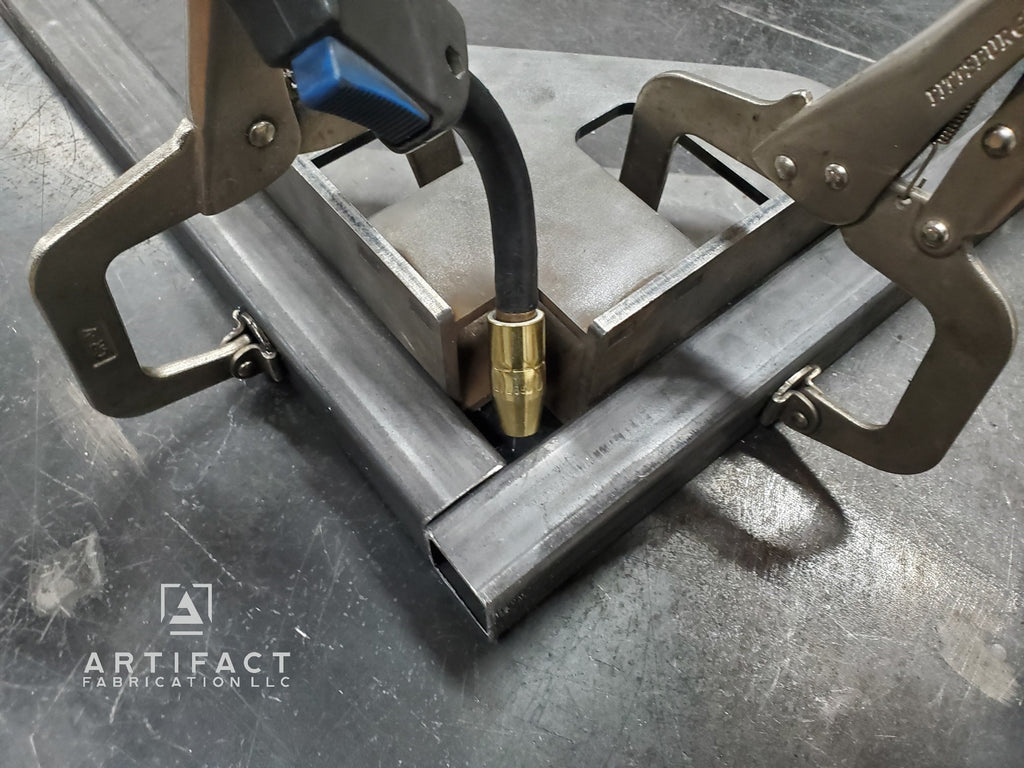

Large relief cut-outs in sides for clamping to materials
Large relief at corner of square for inside corner welding access
Tabs are recessed into face when fully installed, they do not protrude!

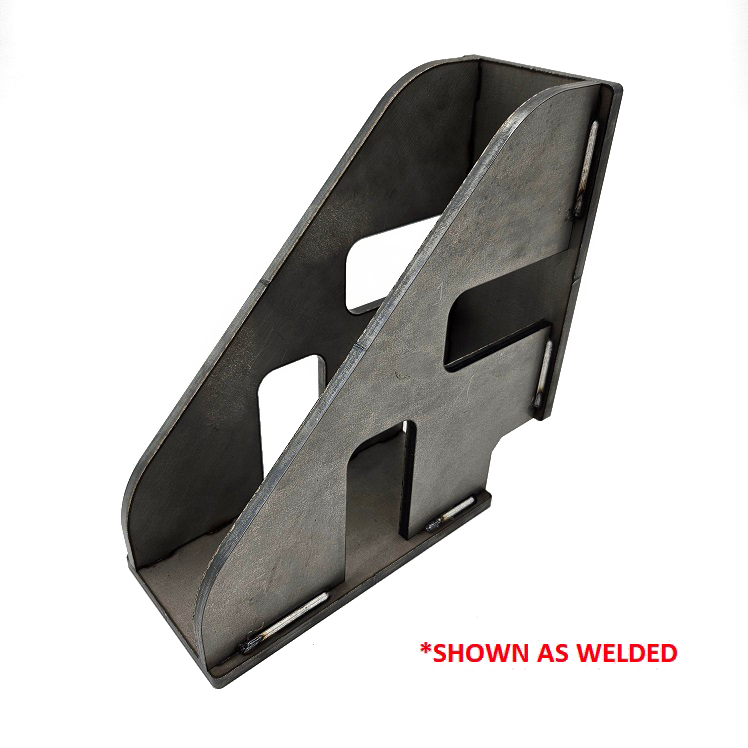

Easy to assemble by simply locking the 4 pieces together and welding
Designed with a weld area on the outside of gussets to almost completely eliminate warping from assembly!
Works excellent in a wood shop environment as well!

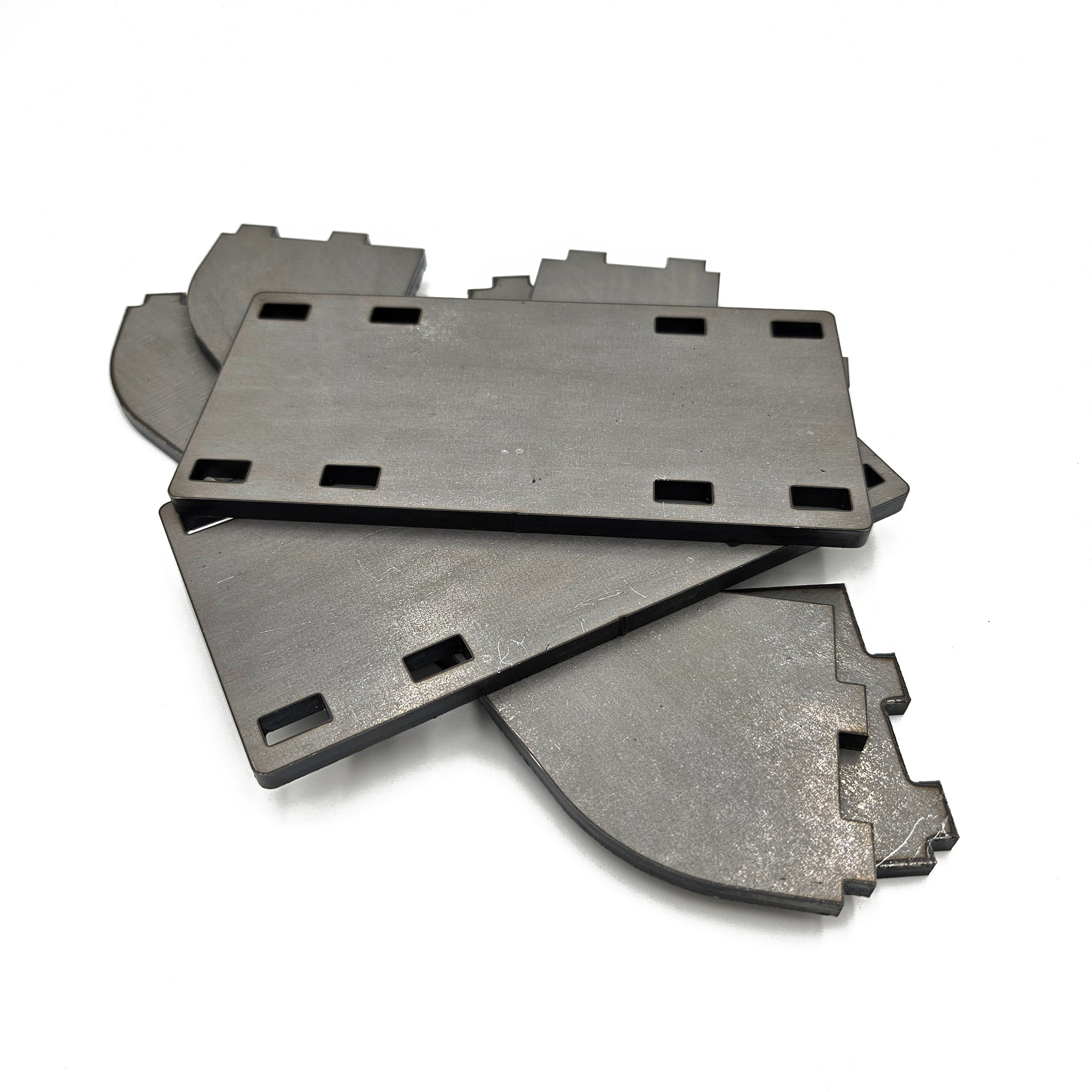

Package Includes:

(2) Gusset Plates

(2) Face Plates

Returns not accepted once welded.
